DCX LENSES
Publication time:2021-04-26 13:12:05    Visits:1835

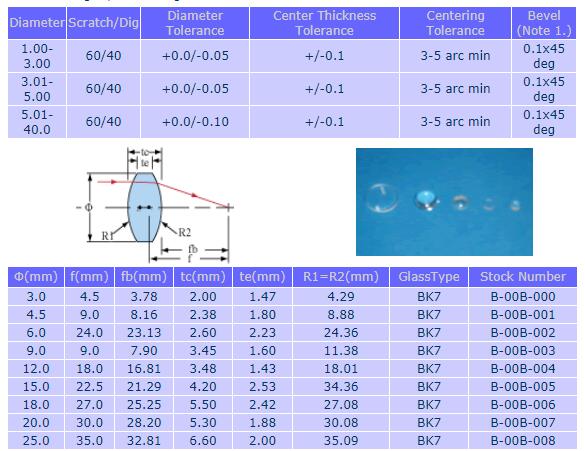

Double-Convex Lenses (DCX) are lenses which have two outward curved faces. Double-Convex Lenses have a positive focal length and will act as a magnifying or condensing lens. All dimensions in mms.

NOTES:

  1. If the (diameter30.85x[radius of curvature]) then no bevel is required.

  2. Clear Aperture Specification: 3.00 diameter CA=(diameter) - 0.50mm
    3.01-12.50 diameter CA=(diameter) = 1.00mm
    12.51-75.00 diameter CA=(diameter) - 1.50m

  3. Coating: 1/4 Wave MgF2 @ 550nm


(All specifications are subject to chance without notice. We reserve the right to correct misprints.)
