PLANO-CONVEX LENSES

Publication time：2021-04-26 13:15:58 Visits：3401

NOTES:

If the (diameter30.85x[radius of curvature]) then no bevel is required.
Clear Aperture Specification: 3.00 diameter CA=(diameter) - 0.50mm
3.01-12.50 diameter CA=(diameter) = 1.00mm
12.51-75.00 diameter CA=(diameter) - 1.50m
Coating: 1/4 Wave MgF2 @ 550nm

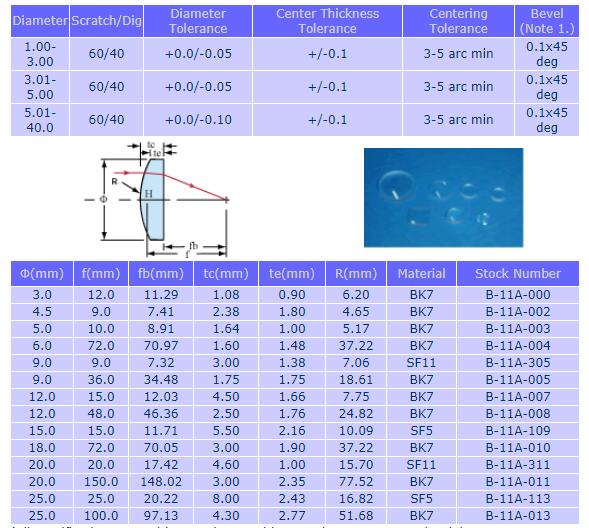

PLANO-CONVEX LENSES1.jpg

(All specifications are subject to chance without notice. We reserve the right to correct misprints.)
