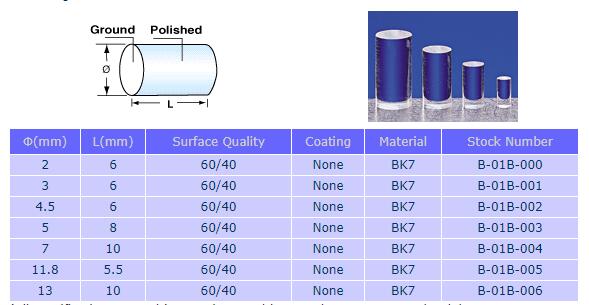

Rod Lenses are polished on the circumference and ground on both ends. Optical performance is similar to a cylinder lens. Collimated light passing through the diameter of the rod will be focused into a line. All dimensions are in mm. NOTES: Diameter Tolerance: +0mm/-0.03mm Length Tolerance: +0mm/-0.1mm Edge Treatment: No Bevel
(All specifications are subject to chance without notice. We reserve the right to correct misprints.) |
