45°ROD LENSES
Publication time:2021-04-26 13:29:16    Visits:1283

45° Rod Lenses can be used to bend image paths and redirect laser light. The small diameter makes them ideal for use in fiberscope/borescope applications where size is critical. Polished eliptical surface and ground on the circumference and base. All dimensions are in mm.

NOTES:

  1. Diameter Tolerance: +0mm/-0.03mm

  2. Length Tolerance: +0mm/-0.1mm

  3. Angle Tolerance: ±10 arc min.

  4. Edge Treatment: No Bevel

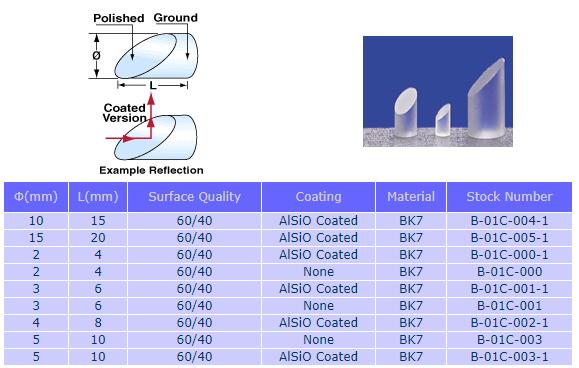

45°ROD LENSES.jpg

(All specifications are subject to chance without notice. We reserve the right to correct misprints.)
