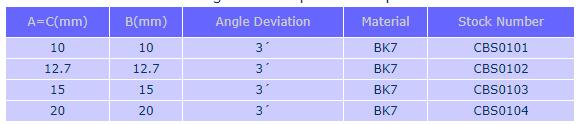

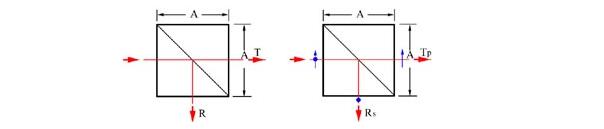

Narrow Band Beamsplitter Cube

SPECIFICATIONS:

• Surface Quality: 60/40

• Surface Flatness: l/4 @ 632.8 nm

• Beam Deviation: <3 arc minutes

• Dimensional Tolerance: ±0.10mm

• T/R: 50/50 ±  5%
         T=(Ts+Tp)/2, R=(Rs+Rp)/2

• Coatings: Single wavelength partial reflectance: on hypotenuse face
                  "V" AR-coatings: on all input and output face

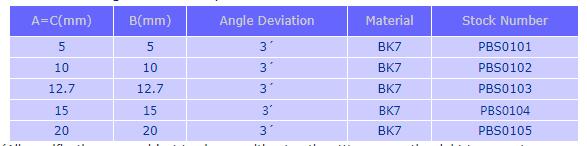

Narrow Band Polarization Beamsplitter

SPECIFICATIONS:

• Surface Quality: 60/40

• Dimensional Tolerance: ±0.10mm

• Beam Deviation: <3 arc minutes

• Extinction Ratio:  > 100:1

• Principal Transmittance:Tp >95% and Ts <1%

• Principal Reflectance:Rs >99% and Rp <5%

• Coatings: Polarization beamsplitter coating : on hypotenuse

• AR coating: R <0.25% per face for 4 faces

(All specifications are subject to chance without notice. We reserve the right to correct misprints.)
