Broadband Beamsplitter Cube
Publication time:2021-04-26 13:33:10    Visits:1067

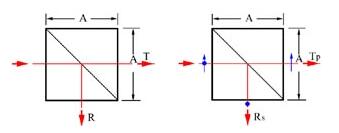

Broadband Beamsplitter Cube1.jpg

Broad Band Beamsplitter Cube

SPECIFICATIONS:

  • Surface Quality: 60/40

  • Surface Flatness: l/4 @ 632.8 nm

  • Beam Deviation: <3 arc minutes

  • Dimensional Tolerance: ±0.10mm

  • T/R: 50/50 ±  5%
           T=(Ts+Tp)/2, R=(Rs+Rp)/2

  • Coatings: Broadband partial  reflectance: on hypotenuse face

  • BBAR-coatings: on all input and output face

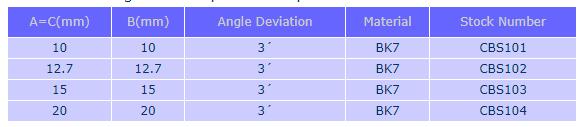

Broadband Beamsplitter Cube2.jpg

Broad Band Polarization Beamsplitter

SPECIFICATIONS:

  • Surface Quality: 60/40

  • Dimensional Tolerance: ±0.10mm

  • Beam Deviation: <3 arc minutes

  • Extinction Ratio:  > 100:1

  • Principal Transmittance:Tp >95% and Ts <1%

  • Principal Reflectance:Rs >99% and Rp <5%

  • Broad Band Polarization beamsplitter coating : on hypotenuse

  • BBAR coating: on all input and output face

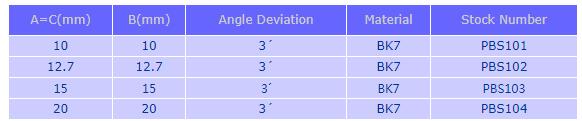

Broadband Beamsplitter Cube3.jpg

(All specifications are subject to chance without notice. We reserve the right to correct misprints.)
