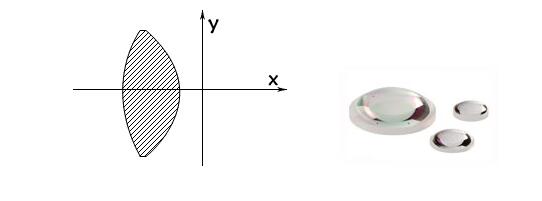

An aspheric lens is a single element optical component with one aspheric convex surface and one plano or sperical convex surface. Characterized by f-numbers less than 10, aspheres provide maximum energy throughput over a limited path length. Although not designed for imaging applications, they are ideal for use in illumination systems where it is often necessary to collect and/or focus as much light as possible.

Specifications:

• Surface Quality: 60/40

• Design Wavelength 20~600nm

• Length Tolerance: ±0.10mm

• Foci Tolerance: ±0.01mm

• Relative Aperture: 1:0.5~1:10

• Centration <3 arc minutes

• Clear Aperture: Central 85% of diameter

• Coating: Single layer MgF2 AR coating or specified by customer

(All specifications are subject to chance without notice. We reserve the right to correct misprints.)
